• GearJaw Pry Bar

Model : GJC-25132 GJC-31132 GJC-41132 GJC-46152 GJC-56152 GJC-61172 GJC-75172

Q'ty :

Add To Inquiry

Most popular patented adjustable pry bars.  More than millions pieces sold worldwide.  All steel solid grip series.  From size 10" to 33".  Torques exceed ASME / ANSI / DIN standards.

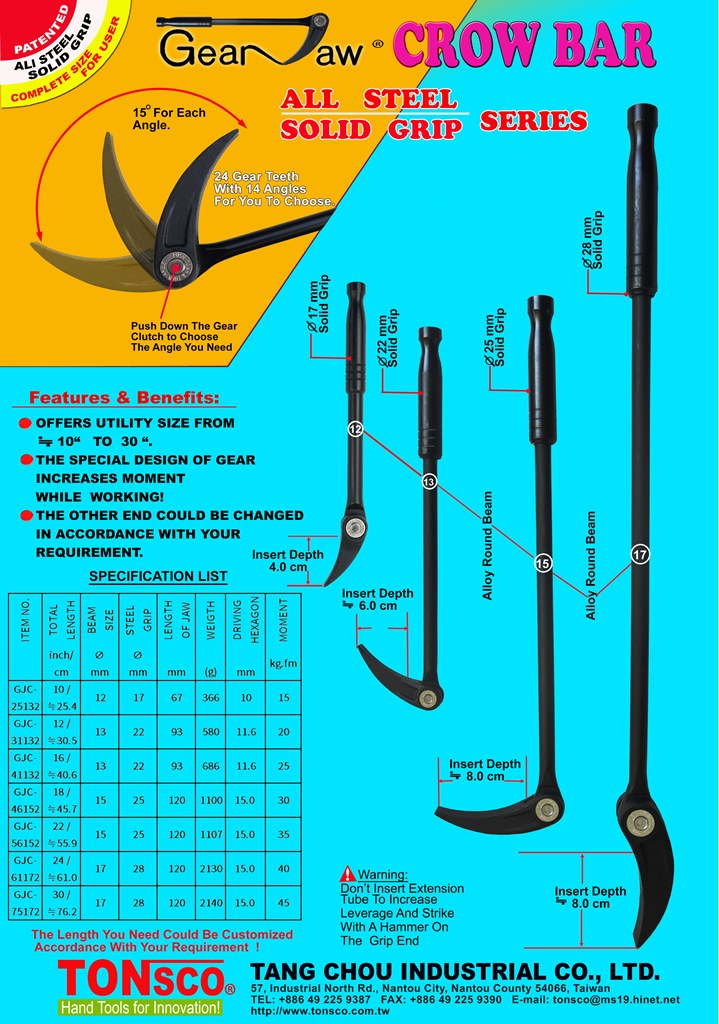

SPEC:

ITEM NO LENGTH BEAM GRIP JAW SIZE WEIGHT MOMENT
GJC-25132 25CM / 10" 12MM 17MM 67MM 0.36KG 15 KGF-M
GJC-31132 30CM / 12" 13MM 22MM 93MM 0.58KG 20 KGF-M
GJC-41132 40CM / 16" 13MM 22MM 93MM 0.68KG 25 KGF-M
GJC-46152 46CM / 18" 15MM 25MM 120MM 1.10KGS 30 KGF-M
GJC-56152 56CM / 22" 15MM 25MM 120MM 1.8KGS 35 KGF-M
GJC-61172 61CM / 24" 17MM 28MM 120MM 2.13KGS 40 KGF-M
GJC-75172 76CM / 30" 17MM 28MM 120MM 2.90KGS 45 KGF-M

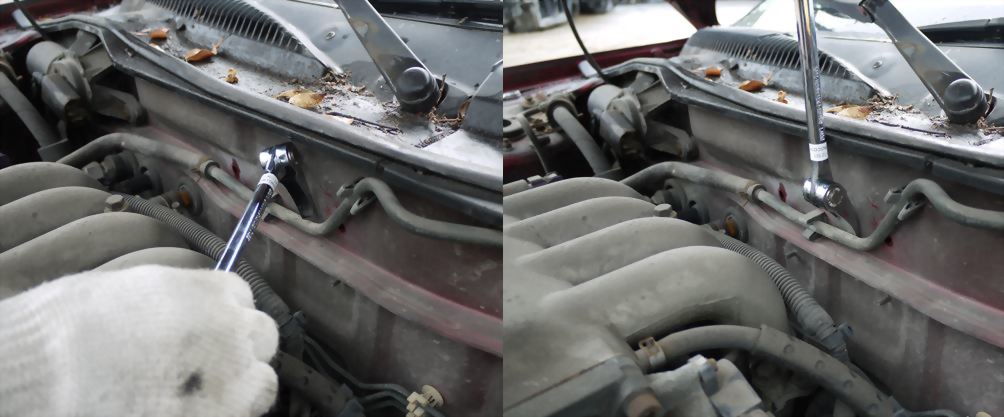

APPLICATIONS:



FATIGUE TEST:
